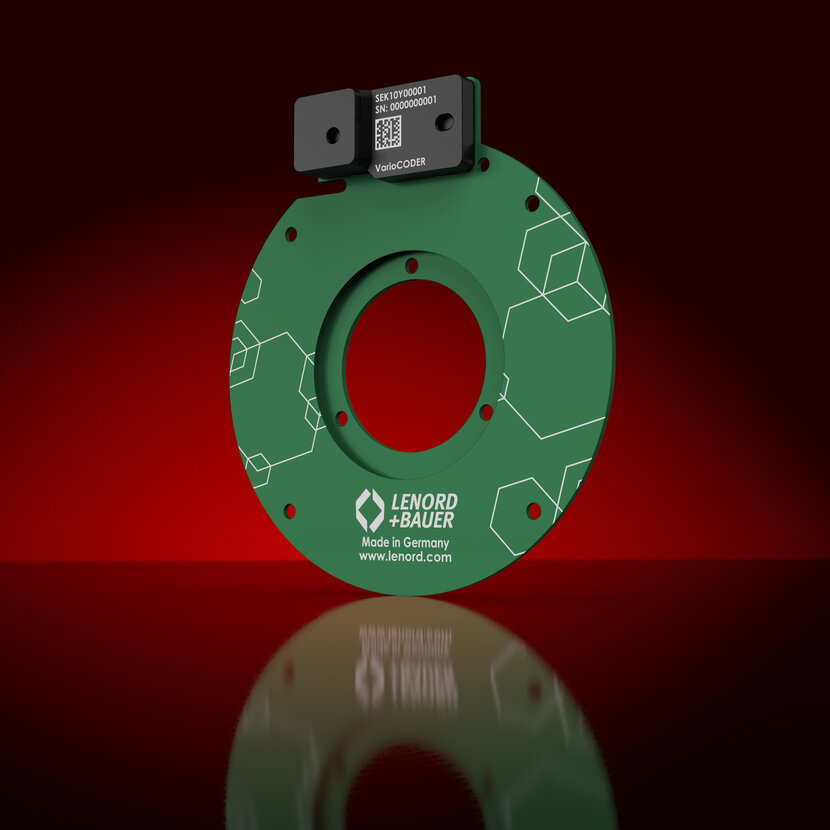

VarioCODER GEL SEK10
Inductive rotor position encoder
- Flexible: Can be integrated into all motor designs in minimum space with high mounting tolerances
- Fast: Immediate angle output after switching on without any reference search routine
- Robust: High reliability with regard to mechanical loads
- Customized: Function samples and prototypes available within eight weeks
- Cost-efficient: Price/performance similar to mass-produced encoders
- Energy-efficient: Higher control quality due to high-resolution signals
Product details
| Technical data | Rotor position encoder GEL SEK10 |
|---|---|
| Fields of application | E-mobility on-road, off-road, maritime applications, industry; motor commutation, position and speed acquisition; applications with large rotor diameters and hollow shafts |
| Rotational speed | ≤ 100.000 min-1 |
| Accuracy | electrical 0,5° |
| Latency | < 5 μs |
| Operating temperature range | -40 °C ... +125 °C, short-term up to 150°C |
| Configurable parameters | |
|---|---|
| Number of pole pairs | 1 … 64 |
| Outside diameter stator | 52 … 200 mm |
| Shaft diameter rotor | 2 … 138 mm |
| Fastening stator | 2 to 32 bores or slotted holes |
| Fastening rotor | 2 to 32 screws/ Alternatively gluing/clamping possible |
| Connector outlet | tangential/axial |
| Output signal (sin/cos) | single-ended/differential |
