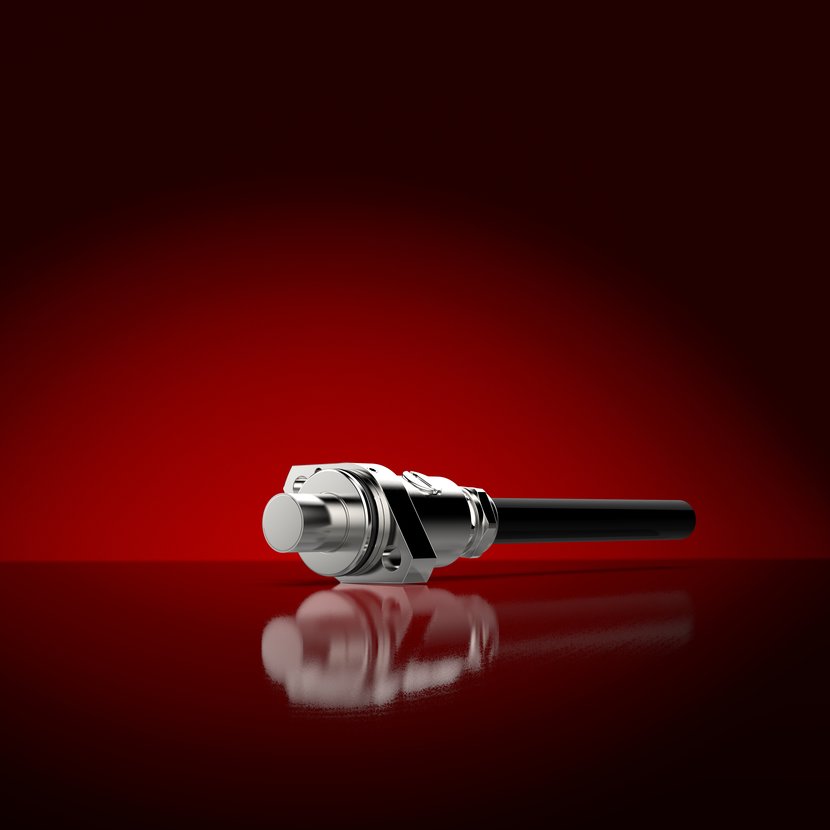

1- or 2-channel speed sensor GEL 2476 U
Speed sensor with current or voltage output (standstill monitoring voltage)
- Current output signals unsusceptible to electromagnetic disturbances
- Cable break monitoring by current output or voltage output with standstill monitoring voltage
- Easy to install as there is a large measuring distance
- UIC certified
Product details
| Technical data | Speed sensor GEL 2476 U | |
|---|---|---|
| Fields of application | Rail vehicles, traction control | |
| Supply voltage | 10 to 20 V DC | |
| Measuring range | 0 Hz to 8 kHz | |
| Signal | Current output, voltage output with standstill voltage | |
| Temperature range | -40 °C to +85 °C | |
| Protection class | IP 68 | |
| Number of channels | up to 2 | |
| Module m of target wheel | 1 to 3.5 | |
| Material of target wheel | ferromagnetic steel | |
| Air gap | 0.2 mm to 2.2 mm depending on the module | |
Stp-files
If you need stp data, then send an e-mail with the article no. to info@lenord.de.
